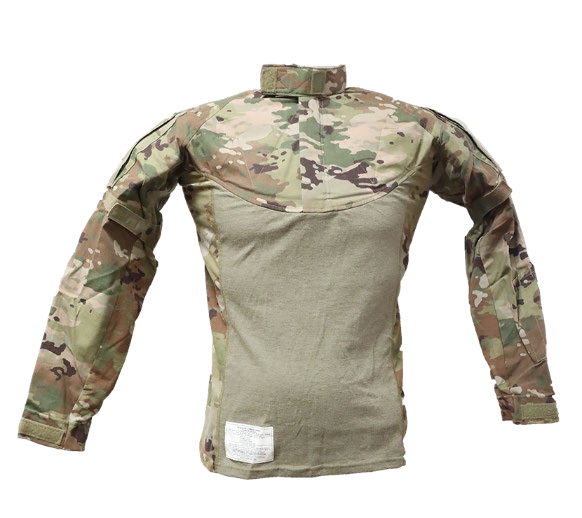

Ballistic Combat Shirt
The Ballistic Combat Shirt (BCS) is a component of the Soldier Protection System Torso and Extremity Protection (SPS-TEP). The BCS design is intended to function as a ballistic Army Combat Shirt (ACS).
Description
The non-ballistic materials used in the torso and sleeves of the BCS are equal to the ACS in weight and functional characteristics, including flame resistance and moisture wicking. The deltoid and upper thoracic portions of the BCS contain soft armor that provides protection from fragmenting munition threats. The ballistics of the upper thoracic area are sewn into the shirt to improve fit. The deltoid portion of the BCS forms an articulating shoulder, which does not impede the normal upward motion of the arm at the shoulder joint and are removable. [1]
Specification
Logistics
- BCS Universal
- non-removable soft armor panels
- X-small: 8470-01-645-1046
- Small: 8470-01-645-1048
- Medium: 8470-01-645-1050
- Large: 8470-01-645-1051
- X-large: 8470-01-645-1052
- XX-large: 8470-01-645-1054
- BCS Female (BCS-F)
- non-removable soft armor panels
- X-small: 8470-01-665-6220
- Small: 8470-01-665-6224
- Medium: 8470-01-665-6226
- Large: 8470-01-665-6227
- X-large: 8470-01-665-6232
- XX-large: 8470-01-665-6234
- BCS Universal complete
- base shirt with removable deltoid ballistic inserts
- X-small: 8470-01-692-1175
- Small: 8470-01-692-1181
- Medium: 8470-01-692-1186
- Large: 8470-01-692-1205
- X-large: 8470-01-692-1209
- XX-large: 8470-01-692-1212
- BCS Universal base shirt
- does not include removable deltoid ballistic inserts
- X-small: 8470-01-692-1387
- Small: 8470-01-692-1403
- Medium: 8470-01-692-1409
- Large: 8470-01-692-1411
- X-large: 8470-01-692-1416
- XX-large: 8470-01-692-1417
- BCS Universal deltoid ballistic insert, left
- X-small: 8470-01-692-1444
- Small: 8470-01-692-1448
- Medium: 8470-01-692-1454
- Large: 8470-01-692-1457
- X-large: 8470-01-692-1466
- XX-large: 8470-01-692-1468
- BCS-F complete
- base shirt with removable deltoid ballistic inserts
- X-small: 8470-01-692-1547
- Small: 8470-01-692-1549
- Medium: 8470-01-692-1553
- Large: 8470-01-692-1555
- X-large: 8470-01-692-1556
- XX-large: 8470-01-692-1559
- BCS-F base shirt
- does not include removable deltoid ballistic inserts
- X-small: 8470-01-692-1690
- Small: 8470-01-692-1697
- Medium: 8470-01-692-1702
- Large: 8470-01-692-1704
- X-large: 8470-01-692-1706
- XX-large: 8470-01-692-1708
- BCS-F deltoid ballistic insert, left
- X-small: 8470-01-692-1860
- Small: 8470-01-692-1902
- Medium: 8470-01-692-1906
- Large: 8470-01-692-1907
- X-large: 8470-01-692-1908
- XX-large: 8470-01-692-1909
