Based on user feedback on the original system, the MOLLE requirements were modified to eliminate the need for a quick-release frame that integrates into the load bearing vest (LBV). The change allowed developers to replace the probe and socket mechanism, which caused problems in donning for some soldiers and Marines, to a quick-release mechanism for a more traditional permanently-mounted waist belt on the frame.

MOLLE II packs including a large rucksack and an assault pack

Components

The MOLLE system consists of

• a main pack, shoulder straps and a molded waist belt attached to the frame that can accommodate add-on components including
  • a sleep system carrier (together with the main pack, was later replaced by a large rucksack),
  • a patrol pack (later replaced by an assault pack),
  • two sustainment pockets,
• a waist pack, which replaces the MOLLE butt pack,
• a fighting load carrier, which replaces the LBV and utility belt,
• removable pockets for various configrations
• six foot lashing straps,
• hydration system,
• repair kit,
• and additional pockets.

The Interlocking Attachment System is used to attach pockets to the Fighting Load Carrier, packs, and waist belt.

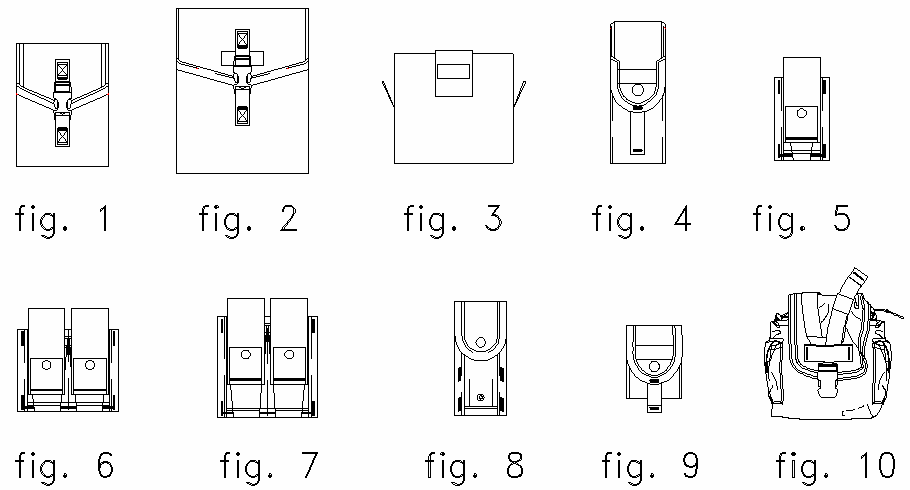

Pockets

1. 100 round SAW pouch
2. 200 round SAW pouch
3. medical pocket
4. 30-round double magazine pocket (style #4050 is shown)
5. single high explosive grenade pocket
6. double high explosive grenade pocket
7. double illumination round pocket
8. 9mm magazine pocket
9. fragmentation grenade pocket
10. canteen/general purpose pouch
11. M4 three magazine side x side pouch (added later)
12. E-tool carrier (not shown)
13. Flashbang pouch (not shown)

30-round double magazine pocket initially had the same design as the original pocket.

• Woodland: 8465-01-465-2092 ?
• Desert: 8465-01-491-7435 ?
• Coyote: 8465-01-532-2304 ?

Accessories

In addition to the pre-configured duty sets, the MOLLE II system has additional components that may be added to meet more specific mission needs.

1. K-Bar Adapter
2. ALICE Clip Adapter
3. Shotgun Shell Pouch
4. MBITR Pouch
5. Lashing Straps
6. Admin Pouch
7. Leaders Pouch
8. PVS14 Pouch
9. Radio Pouch
10. Vehicle Panel
11. Shoulder Strap
12. 300-Round, 7.62 Ammo Bag

Material

The base fabric used for all pockets/pouches, packs and rucksacks is MIL-C-43734 Class III textured nylon duck, coated on the back side with clear polyurethane and is water repellent treated. The fabric weighs 11.0 to 12.0 ounces per square yard and has a minimum breaking strength of 500 pounds warp and 300 pounds filling.

Specifications ^[1]

• CO/PD 02-02
• CO/PD 02-05: Medic Bag/IMMS
• CO/PD 05-03: Accessories
  • 2015-05-13: Revision C^[2]
  • 2005-11-08^[3]
• CO/PD 04-12: Holster/Leg Extender
  • 2004-12-06: Revision A^[4]
• CO/PD 10-03, 15 Nov 2010: Waterproof Pack Liner^[5]
  • FG 504: 8465-01-591-7061 ?
  • Tan 499: 8465-01-591-7521 ?

Instruction

• MOLLE II Care and Use Manual
• TM 10-8465-236-10. Operator's Manual for Modular Lightweight Load-carrying Equipment (MOLLE) II
• TM 10-8465-236-24&P. Field and Sustainment Maintainance Manual Including Repair Parts and Special Tools List for Modular Lightweight Load-carrying Equipment (MOLLE) II
• TM 10-8400-203-23 with Changes 1-11. Chapter 27.

Further Improvements

The new MOLLE Rucksack for Airborne and General Purpose Forces

A number of improvements in the MOLLE system are underway, including:

• replacing the Fighting Load Carrier with the Tactical Assault Panel which is compatible with the safety release mechanism of the Improved Outer Tactical Vest,
• 3000-cubic-inch Medium Rucksack to fill the gap for 3-day missions/72-hour packing list,
• Improved MOLLE Medic Set
• MOLLE 4000 rucksack to replace the large rucksack for the airborne community. ^[6]
  • The new MOLLE Rucksack for Airborne and General Purpose Forces is a Government-owned design. It has an approximately 4000 cubic inch capacity and made of 1000 Denier nylon coated fabric, has an external frame, adjustable shoulder straps and an adjustable waist belt. The exterior of the rucksack has multiple storage pockets and pouches of varying dimensions. The interior of the main compartment of the rucksack has a pouch for carrying a radio / hydration bladder or other similarly sized equipment. The interior of the main compartment of the rucksack has a center zippered flap that divides the main compartment into two approximately equal upper and lower halves. The bottom of the rucksack has a separate storage compartment and also above that a zippered access into the lower part of the main compartment.^[7]
  • set: 8465-01-F90-2235, 8465-01-673-3364 ?^[8]
    • ruck: 8465-01-F90-2237, 8465-01-673-3374 ?
    • right shoulder strap: 8465-01-673-3510 ?
    • left shoulder strap: 8465-01-673-3517 ?
    • frame: 8465-01-673-3400 ?
    • compression strap: 8465-01-673-3521 ?
    • waist belt: 8465-01-673-3449 ?
