Modular Scalable Vest

Individual Equipment»Personal Armor»Soldier Protection System»Torso and Extremity Protection

The Modular Scalable Vest (MSV) is one of four systems which integrates into the Soldier Protection System Torso Extremity Protection (SPS-TEP).

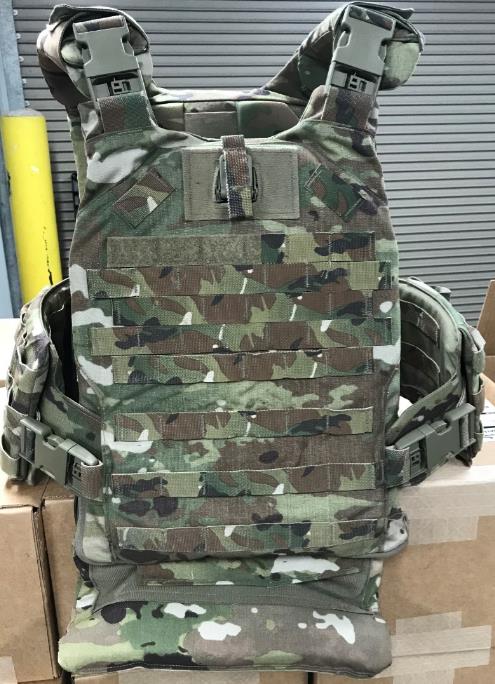

MSV Gen I with the front ballistic insert partially inserted

Description

The MSV consists of a low profile vest with four soft armor panels (one front, one back, and two side cummerbunds) covered in a camouflage cloth and hook and loop. The soft armor panels can then be inserted into a tactical outer carrier that also accommodates hard armor protective inserts. The tactical outer carrier also contains two side plate pocket that will accommodate soft armor inserts. The outer carrier is made of a flame resistant outer cloth, webbings, hook/loop, polyethylene stiffener, a quad-release system, and several other non-ballistic materials.^[1]

Specification

AR/PD 15-03

Redesign

MSV Gen II

Logistics

Front carrier
- X-small: 8470-01-648-7696
- Small Short: 8470-01-648-7703
- Small: 8470-01-648-7699
- Small Long: 8470-01-648-7704
- Medium: 8470-01-648-7705
- Large: 8470-01-648-7707
- X-large: 8470-01-648-7708
Back carrier
- X-small: 8470-01-648-7709
- Small Short: 8470-01-648-7712
- Small: 8470-01-648-7710
- Small Long: 8470-01-648-7713
- Medium: 8470-01-648-7714
- Large: 8470-01-648-7717
- X-large: 8470-01-648-7719
Front ballistic insert
- X-small: 8470-01-648-7723
- Small Short: 8470-01-648-7726
- Small: 8470-01-648-7725
- Small Long: 8470-01-648-7727
- Medium: 8470-01-648-7728
- Large: 8470-01-648-7729
- X-large: 8470-01-648-7730
Back ballistic insert
- X-small: 8470-01-648-7732
- Small Short: 8470-01-648-7735
- Small: 8470-01-648-7734
- Small Long: 8470-01-648-7736
- Medium: 8470-01-648-7738
- Large: 8470-01-648-7739
- X-large: 8470-01-648-7740
Side plate pocket
- Small (6x6): 8470-01-648-7235
- Medium (6x8): 8470-01-648-7239
- Large (7x8): 8470-01-648-7240
Side plate pocket ballistic insert
- Small (6x6): 8470-01-648-7315
- Medium (6x8): 8470-01-648-7315
- Large (7x8): 8470-01-648-7321
Side plate pocket assembly
- Small (6x6): 8470-01-648-7229
- Medium (6x8): 8470-01-648-7230
- Large (7x8): 8470-01-648-7231
Side plate carrier kit
- Small: 8470-01-657-0555
- Medium: 8470-01-657-0556
- Large: 8470-01-657-0557
Side plate pocket carrier with ballistic insert, right
- X-small: 8470-01-648-7767
- Small: 8470-01-648-7768
- Medium: 8470-01-648-7769
- Large: 8470-01-648-7770
- X-large: 8470-01-648-7771
Side plate pocket carrier with ballistic insert, left
- X-small: 8470-01-648-7774
- Small: 8470-01-648-7777
- Medium: 8470-01-648-7783
- Large: 8470-01-648-7785
- X-large: 8470-01-648-7786
Side plate pocket carrier, right
- X-small: 8470-01-648-7800
- Small: 8470-01-648-7802
- Medium: 8470-01-648-7803
- Large: 8470-01-648-7804
- X-large: 8470-01-648-7805
Side plate pocket carrier, left
- X-small: 8470-01-648-7149
- Small: 8470-01-648-7150
- Medium: 8470-01-648-7151
- Large: 8470-01-648-7152
- X-large: 8470-01-648-7153
Side plate pocket carrier ballistic insert, right
- X-small: 8470-01-649-3922
- Small Short: 8470-01-649-3970
- Small: 8470-01-649-3969
- Small Long: 8470-01-649-3974
- Medium: 8470-01-649-3975
- Large: 8470-01-649-3976
- X-large: 8470-01-649-3978
Side plate pocket carrier ballistic insert, left
- X-small: 8470-01-648-7209
- Small: 8470-01-648-7211
- Medium: 8470-01-648-7213
- Large: 8470-01-648-7214
- X-large: 8470-01-648-7215
Shoulder pad, left
- X-small: 8470-01-648-7242
- Small: 8470-01-648-7246
- Medium: 8470-01-648-7247
- Large: 8470-01-648-7248
- X-large: 8470-01-648-7249
Shoulder pad, right
- X-small: 8470-01-648-7306
- Small: 8470-01-648-7308
- Medium: 8470-01-648-7309
- Large: 8470-01-648-7310
- X-large: 8470-01-648-7311
Complete Set, OCP
- X-small: 8470-01-645-1369
- Small Short: 8470-01-648-7674
- Small: 8470-01-645-1373
- Small Long: 8470-01-648-7678
- Medium: 8470-01-645-1375
- Large: 8470-01-645-1377
- X-large: 8470-01-645-1378
- XX-large: 8470-01-645-1380
