Marine Corps Plate Carrier Generation III

Individual Equipment»Personal Armor»Marine Corps Plate Carrier

The Marine Corps Plate Carrier Generation III (PC Gen III) improves mobility and fit of the legacy PC.

Features

23% lighter than the legacy PC,
laser-cut PALS attachment points,
lighter, low-profile velcro,
FirstSpear™ Tubes™ quick release system. ^[1]

Components

outer vest assembly
- front load bearing panel
- front and rear outer vest
- rear cummerbund adapter
- 2 shoulder straps
inner vest assembly
- front and rear inner vest
- 2 base vest inserts
outer cummerbund assembly
- 2 interchangeable left and right sides
- 2 interchangeable tube adapters
inner cummerbund assembly
- used in a low profile configuration
- 2 interchangeable left and right sides
2 side plate pockets with ballistic inserts
- 6x8
- 6x6 for shorter stature Marines/sailors
harness (used in a load-bearing configuration)
individual repair kit
soft armor cummerbund with ballistic inserts (for law-enforcement version)
organizational repair kit
(optional) yoke and collar, throat protector, rifle bolster, yib-yab strap of IMTV

Configurations

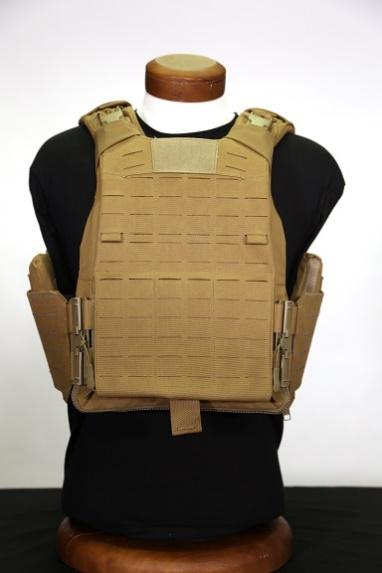

tactical configuration
- outer vest assembly with inner vest with inserts and ESAPIs inserted
- outer cummerbund assembly
- side plate pockets with inserts and plates

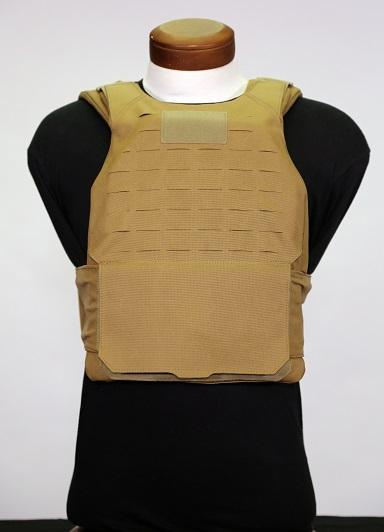

low profile configuration
- primarily designed to be worn without side plates in order to provide increased comfort and ease of use for vehicle crewmen and reconnaissance Marines.
- inner vest assembly with ESAPIs
- inner cummerbund optionally with a tube adapter and the tube from the repair kit
load bearing configuration
- load bearing panel
- harness
- rear cummerbund adapter
- outer cummerbund assembly
- side plate pockets with inserts and plates

Specification

DTL-17001A0029

Logistics

Complete System, Class 1: Coyote Brown 498
- X-small Short: 8470-01-675-1196
- X-small: 8470-01-675-1190
- Small Short: 8470-01-675-1197
- Small: 8470-01-675-1191
- Small Long: 8470-01-675-1198
- Medium: 8470-01-675-1193
- Large: 8470-01-675-1194
- X-large: 8470-01-675-1195
Complete System, Class 3: Black 375
- X-small Short: 8470-01-675-1225
- X-small: 8470-01-675-1208
- Small Short: 8470-01-675-1227
- Small: 8470-01-675-1213
- Small Long: 8470-01-675-1228
- Medium: 8470-01-675-1221
- Large: 8470-01-675-1217
- X-large: 8470-01-675-1222
Load Bearing Panel, Coyote
- X-small Short: 8415-01-672-1962
- X-small: 8415-01-672-1964
- Small Short: 8415-01-672-1992
- Small: 8415-01-672-1993
- Small Long: 8415-01-672-2001
- Medium: 8415-01-672-2002
- Large: 8415-01-672-2003
- X-large: 8415-01-672-2005
Load Bearing Panel, Black
- X-small Short: 8415-01-672-2014
- X-small: 8415-01-672-2017
- Small Short: 8415-01-672-2018
- Small: 8415-01-672-2027
- Small Long: 8415-01-672-2031
- Medium: 8415-01-672-2033
- Large: 8415-01-672-2036
- X-large: 8415-01-672-2039
Outer Vest, Front, Coyote
- X-small Short: 8470-01-672-1224
- X-small: 8470-01-672-1227
- Small Short: 8470-01-672-1228
- Small: 8470-01-672-1231
- Small Long: 8470-01-672-1230
- Medium: 8470-01-672-1234
- Large: 8470-01-672-1235
- X-large: 8470-01-672-1236
Outer Vest, Front, Black
- X-small Short: 8470-01-672-1242
- X-small: 8470-01-672-1243
- Small Short: 8470-01-672-1245
- Small: 8470-01-672-1246
- Small Long: 8470-01-672-1248
- Medium: 8470-01-672-1249
- Large: 8470-01-672-1250
- X-large: 8470-01-672-1251
Outer Vest, Rear, Coyote
- X-small Short: 8470-01-672-1755
- X-small: 8470-01-672-1759
- Small Short: 8470-01-672-1760
- Small: 8470-01-672-1761
- Small Long: 8470-01-672-1763
- Medium: 8470-01-672-1764
- Large: 8470-01-672-1765
- X-large: 8470-01-672-1766
Outer Vest, Rear, Black
- X-small Short: 8470-01-672-1776
- X-small: 8470-01-672-1779
- Small Short: 8470-01-672-1780
- Small: 8470-01-672-1781
- Small Long: 8470-01-672-1782
- Medium: 8470-01-672-1783
- Large: 8470-01-672-1787
- X-large: 8470-01-672-1785
Rear Cummerbund Adapter, Coyote
- One Size: 8470-01-672-4324
Rear Cummerbund Adapter, Black
- One Size: 8470-01-672-0714
Inner Vest, Front, Coyote
- X-small Short: 8470-01-672-2243
- X-small: 8470-01-672-2246
- Small Short: 8470-01-672-2247
- Small: 8470-01-672-2249
- Small Long: 8470-01-672-2271
- Medium: 8470-01-672-2273
- Large: 8470-01-672-2274
- X-large: 8470-01-672-2275
Inner Vest, Front, Black
- X-small Short: 8470-01-672-2608
- X-small: 8470-01-672-2626
- Small Short: 8470-01-672-2627
- Small: 8470-01-672-2628
- Small Long: 8470-01-672-2634
- Medium: 8470-01-672-2659
- Large: 8470-01-672-2662
- X-large: 8470-01-672-2663
Inner Vest, Rear, Coyote
- X-small Short: 8470-01-672-3236
- Small Short: 8470-01-672-3257
- X-small: 8470-01-672-3265
- Small: 8470-01-672-3268
- Small Long: 8470-01-672-3274
- Medium: 8470-01-672-3270
- Large: 8470-01-672-3276
- X-large: 8470-01-672-3278
Inner Vest, Rear, Black
- X-small Short: 8470-01-672-3686
- X-small: 8470-01-672-3688
- Small Short: 8470-01-672-3692
- Small: 8470-01-672-3697
- Small Long: 8470-01-672-3693
- Medium: 8470-01-672-3694
- Large: 8470-01-672-3696
- X-large: 8470-01-672-3697
Base Vest Inserts
- X-small Short: 8470-01-672-4630
- X-small: 8470-01-672-4636
- Small Short: 8470-01-672-4637
- Small: 8470-01-672-4639
- Small Long: 8470-01-672-4640
- Medium: 8470-01-672-4643
- Large: 8470-01-672-4646
- X-large: 8470-01-672-4645
Tube Adapter
- Coyote: 8465-01-673-1788
- Black: 8465-01-673-1791
Outer Cummerbund, Coyote
- Small: 8470-01-672-0455
- Medium: 8470-01-672-0530
- Large: 8470-01-672-0531
Outer Cummerbund, Black
- Small: 8470-01-672-3710
- Medium: 8470-01-672-3711
- Large: 8470-01-672-3712
Inner Cummerbund, Coyote
- Small: 8470-01-672-3741
- Medium: 8470-01-672-3743
- Large: 8470-01-672-3744
Inner Cummerbund, Black
- Small: 8470-01-672-0676
- Medium: 8470-01-672-0678
- Large: 8470-01-672-0679
Soft Armor Cummerbund, Coyote
- Small: 8470-01-672-4053
- Medium: 8470-01-672-4055
- Large: 8470-01-672-4056
Soft Armor Cummerbund, Black
- Small: 8470-01-672-0698
- Medium: 8470-01-672-0700
- Large: 8470-01-672-0702
Cummerbund Insert
- Small: 8470-01-672-9692
- Medium: 8470-01-672-9695
- Large: 8470-01-672-9696
Side Plate Pocket Insert
- 6x6: 8470-01-675-1487
- 6x8: 8470-01-675-1491
Side Plate Pockets, Coyote
- 6x6: 8470-01-672-9933
- 6x8: 8470-01-672-9934
Side Plate Pockets, Black
- 6x6: 8470-01-672-9935
- 6x8: 8470-01-672-9936
Harness, Coyote
- Small: 8470-01-672-4669
- Medium: 8470-01-672-4672
- Large: 8470-01-672-4676
Harness, Black
- Small: 8470-01-673-1688
- Medium: 8470-01-673-1689
- Large: 8470-01-673-1690
Repair Kit (Individual)
- Coyote: 8470-01-672-0391
- Black: 8470-01-672-0395
Repair Kit (Organizational)
- Coyote: 8470-01-672-0408
- Black: 8470-01-672-0401

Acquisition

RFI for PC Gen III: M67854-17-I-1250^[2]
Solicitations for PC Gen III
- M67854-18-R-1305: PC Gen III Soft Armor^[3]
- M67854-18-R-1309: PC Gen III^[4]
- M67854-19-R-1566: PC Gen III Soft Armor^[5]
- SPE1C1-21-R-0049^[6]
- M67854-23-R-1007^[7]
